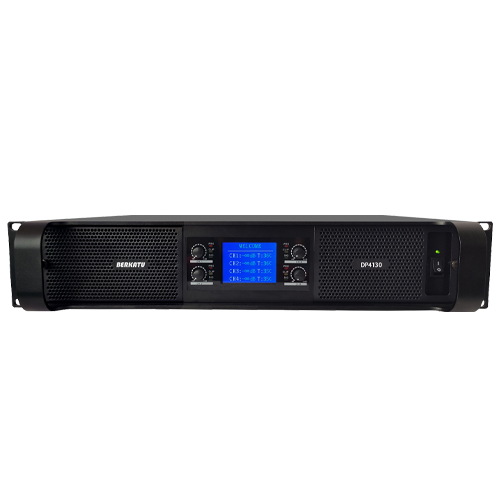

DP400~DP4130
产品参数型号 | DP400 | DP600 | DP800 | DP1000 | DP1200 | ||
4欧立体声输出 | 2X700W | 2x1000W | 2X1400W | 2X1800W | 2X2000W | ||
8欧立体声输出 | 2X400W | 2X600W | 2X800W | 2X1000W | 2X1200W | ||
8欧桥接功率 | 1100W | 1800W | 2300W | 2800W | 3200W | ||
输入灵敏度 | 0.775V/1.4V | ||||||
频率响应 | 20-20000Hz(±0.3dB) | ||||||
转换速率 | ≥10V/µs | ||||||
阻尼系数 | 200:1 | ||||||
串音 | >70dB@1KHz | ||||||
信噪比 | ﹥100dB | ||||||
总谐波失真 | ＜0.5%，1KHz | ||||||
互调失真 | ﹤0.35%8Ω,1KHz1W | ||||||
转换速率 | ≥20v/uS | ||||||
输入灵敏度 | 0.775V,0dB | ||||||
产品尺寸(WxHxD) | 483×88×360mm | ||||||
净重 | 13.3Kg | 14.3Kg | 14.76Kg | 17.76Kg | 18.78Kg | ||
型号 | DP2400 | DP4130 |
4欧立体声输出 | 2x4400W | 4x2100W |
8欧立体声输出 | 2x2400W | 4x1350W |
2欧立体声输出 | 2x4400W | 4x2500W |
线路类型 | Class TD | |
输出电压 | 150V | |
输出电流 | 20A | |
总谐波失真 IMD @ ≤ 1kHz,1dB | < 0.008 % | |
交互失真 THD @ 20Hz-20kHz 1W | < 0.05 % | |
信噪比 S/N Ratio | > 112 dBA | |
串音 Cross Talk @1KHz | > 70 dB | |
频响范围 | @1W 8Ohm,20 Hz-20kHz: +/-0.05dB | |
阻尼系数 | > 400 8oh | |
输入阻抗 | 平衡20K /非平衡20K | |
产品尺寸 ( WxHxD) | 483x88x485mm | |
净重 | 13.57kg | |
产品描述
